01 What
Every aerodynamic device had to be light, stiff, and compliant with Formula Student Germany's (FSG) structural rules. I aligned the aero and structural design process so each device was validated in FEA against the rulebook loads before manufacture.
02 How

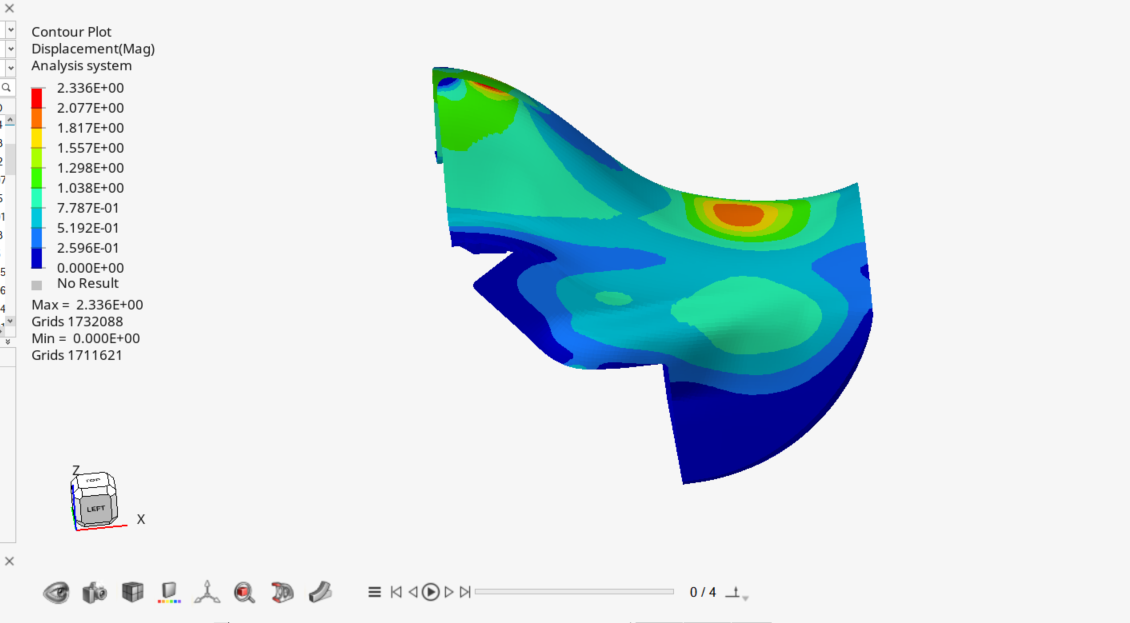

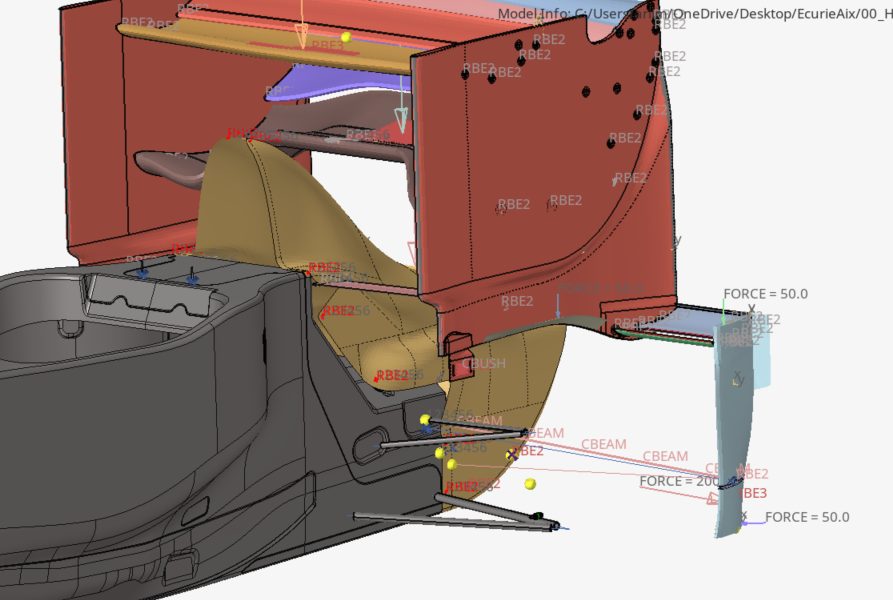

- 01Applied FSG's aero-device load cases in FEA: 200 N distributed over ≥225 cm², and a 50 N point load at any position.

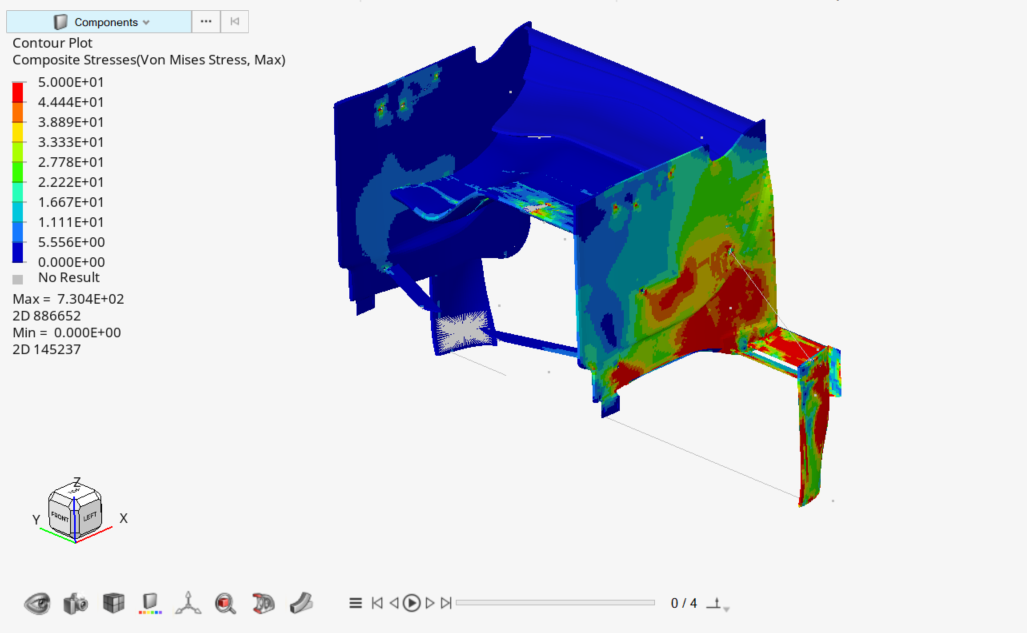

- 02Optimised the composite layup to hold deflection limits while removing material carrying no load.

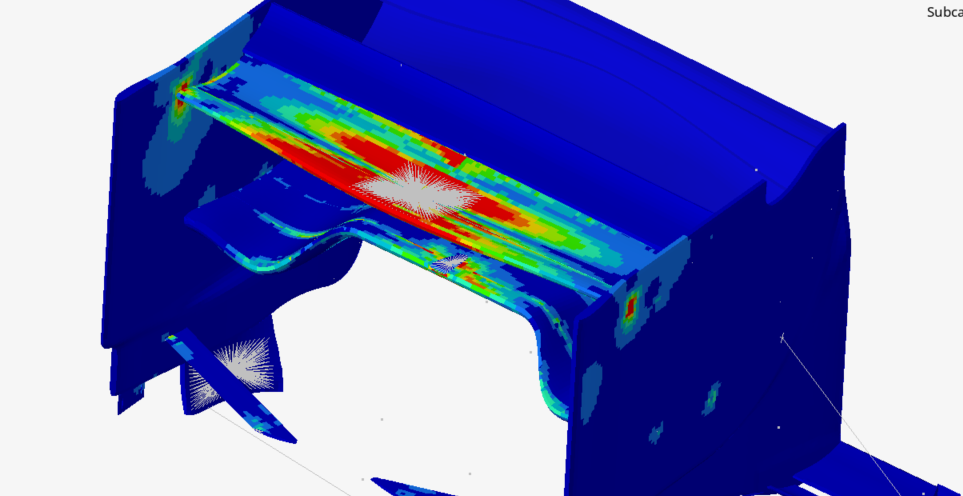

- 03Iterated wing and mounting geometry until stress and deflection cleared the rules with margin.
03 Result
- -Reduced rear-wing weight by 11% versus the previous year.
- -All aerodynamic devices passed FSG's stability and strength rules.
- -Met structural and aerodynamic requirements in a single validated design.
