01 What
Built a robot to retrieve and carry payloads across a defined course for Warman Challenge Australia, as part of Mechatronics Design Fundamentals. As team lead I split the workload, designed the mechanism in SolidWorks, wired the electronics and wrote the C++ code, taking ownership of the robot from CAD to competition.
02 How

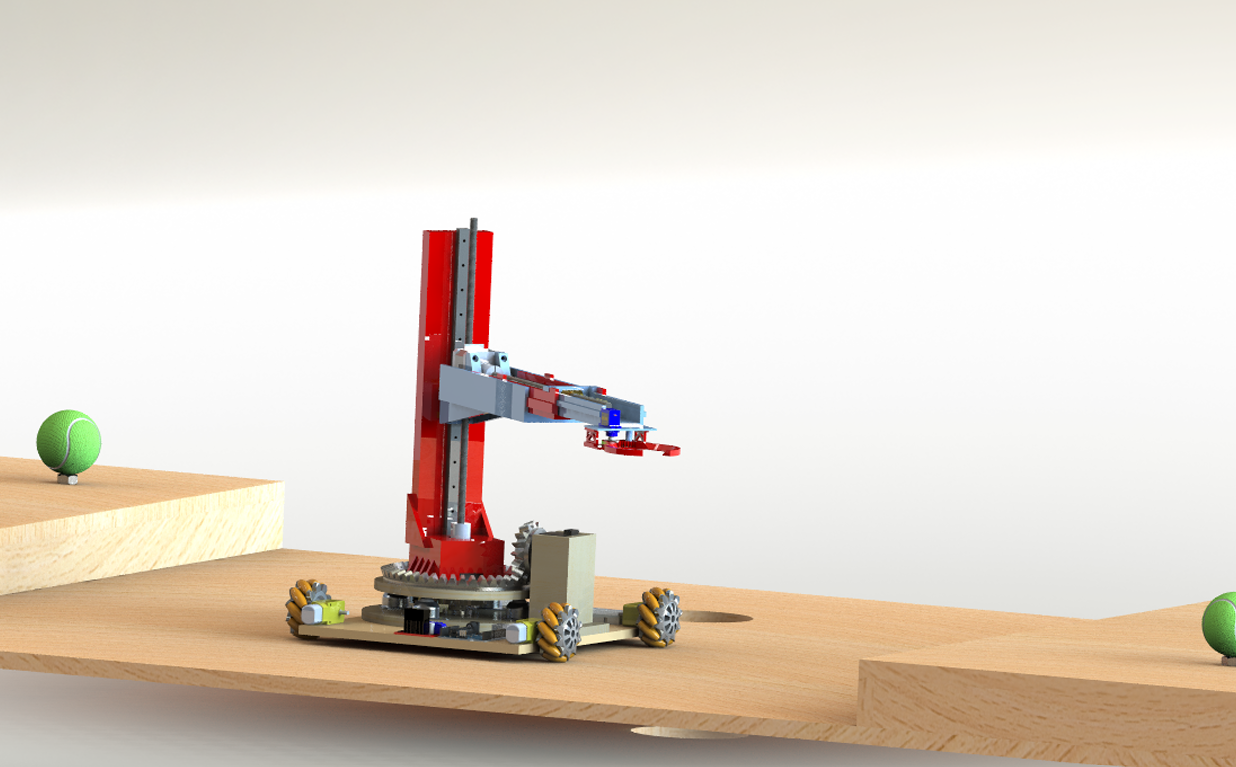

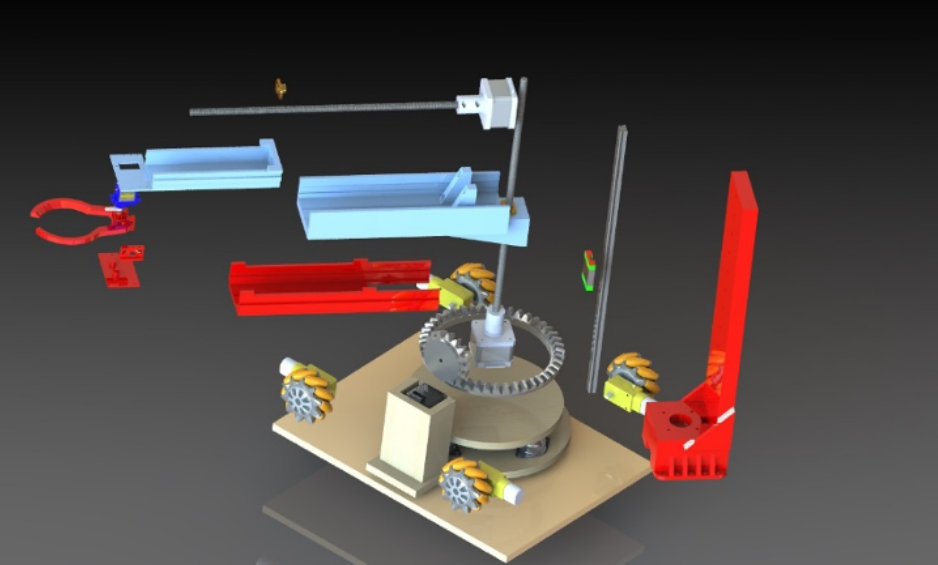

- 01Designed the vertical and horizontal actuation mechanism in SolidWorks, with a gripper on a mecanum drive base.
- 02Wired the electronics and wrote the C++ code: an Arduino and L298N motor driver boards on low voltage DC, with spindle motors for accurate telescopic actuation and DC motors for the mecanum drive.

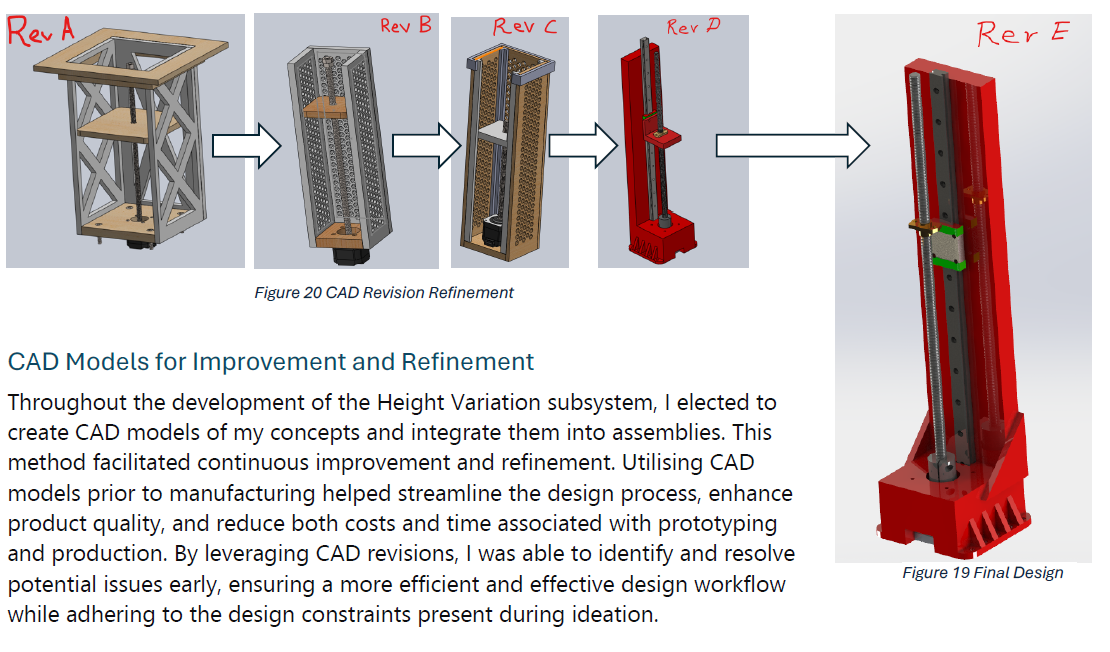

- 033D printed the actuation mechanism and developed it through five CAD revisions (REV A to E), guided by what testing showed.

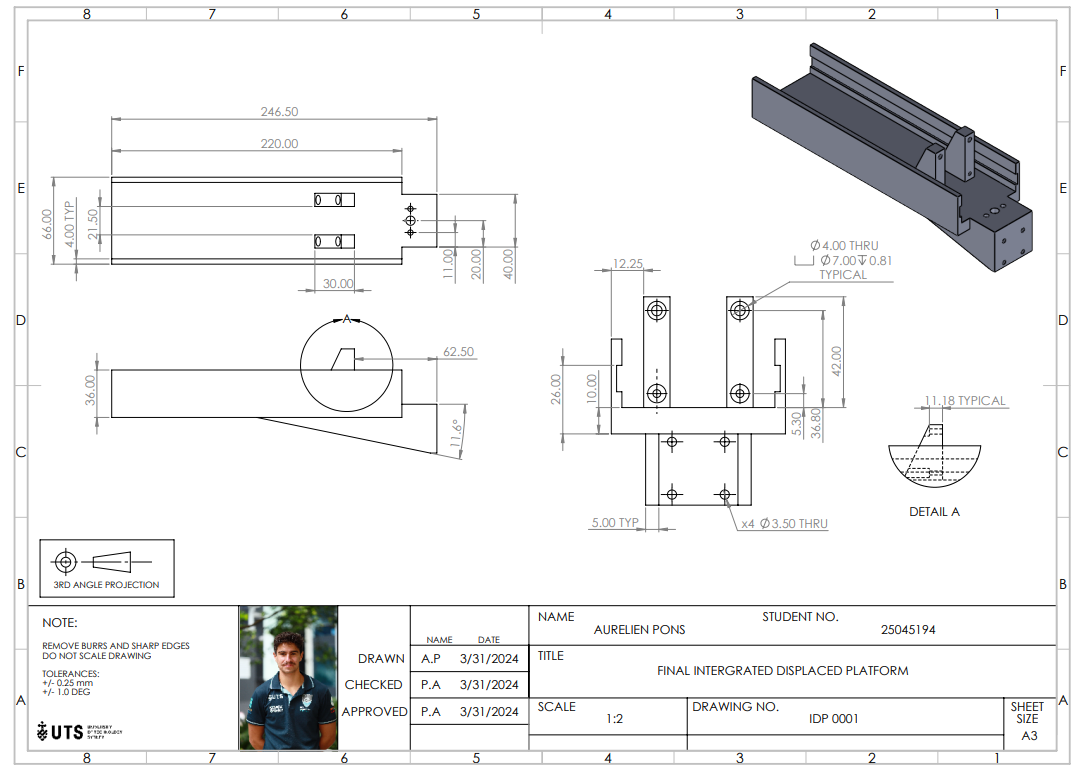

- 04Wrote the engineering documentation for the height variation mechanism: a decision matrix, lead screw and power calculations, and a full drawing pack.
03 Result
- -The robot met its design requirements: precise, fast and actuated by a single switch.
- -Mechanics, electronics and code working together in one machine.
- -The engineering documentation, including reporting, scored 100% in Mechatronics Design Fundamentals.
