01 What
Set the driver package, sightline, reach, and pedal-box adjustability, so every target driver fits the car correctly.
02 How

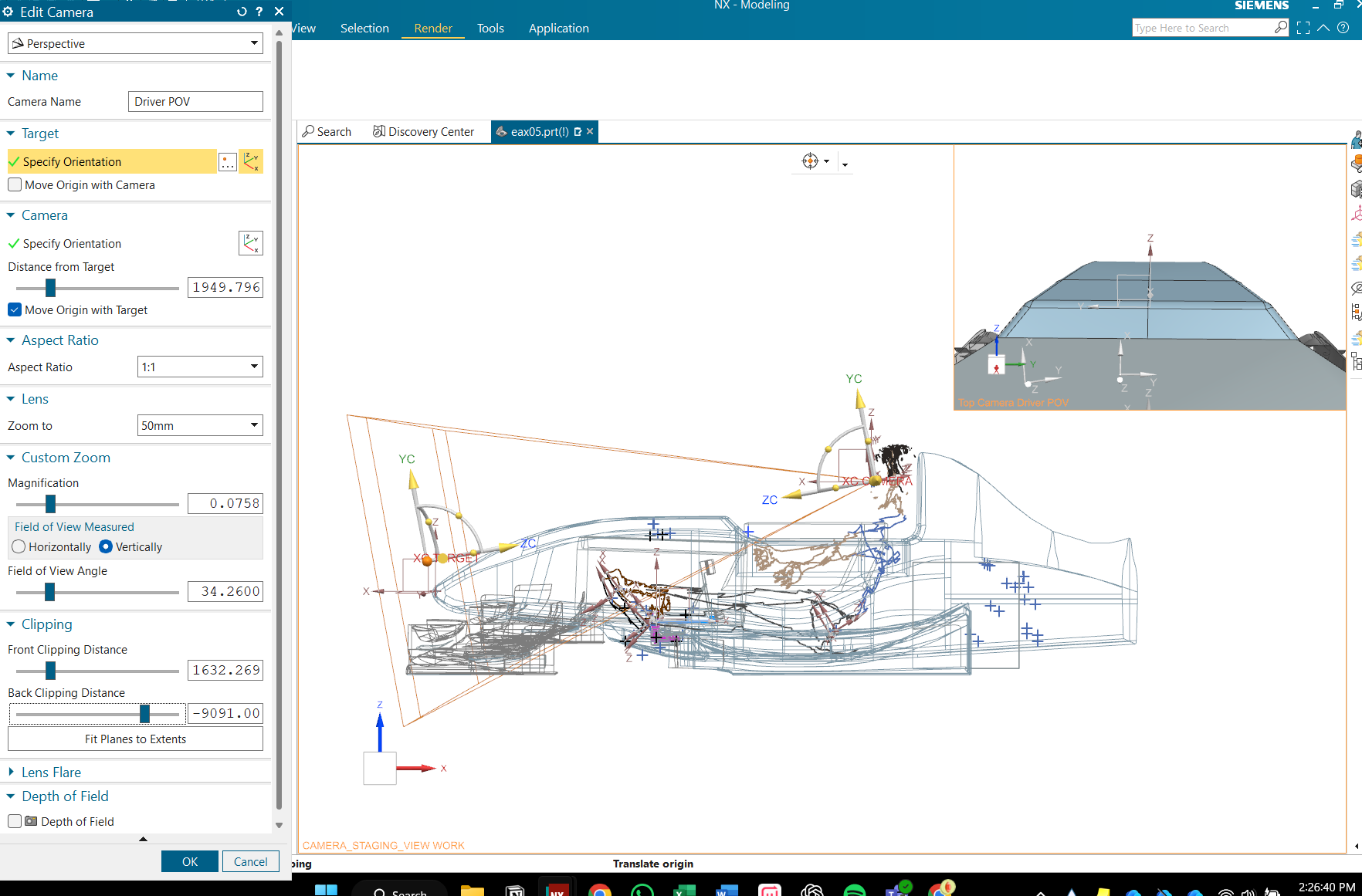

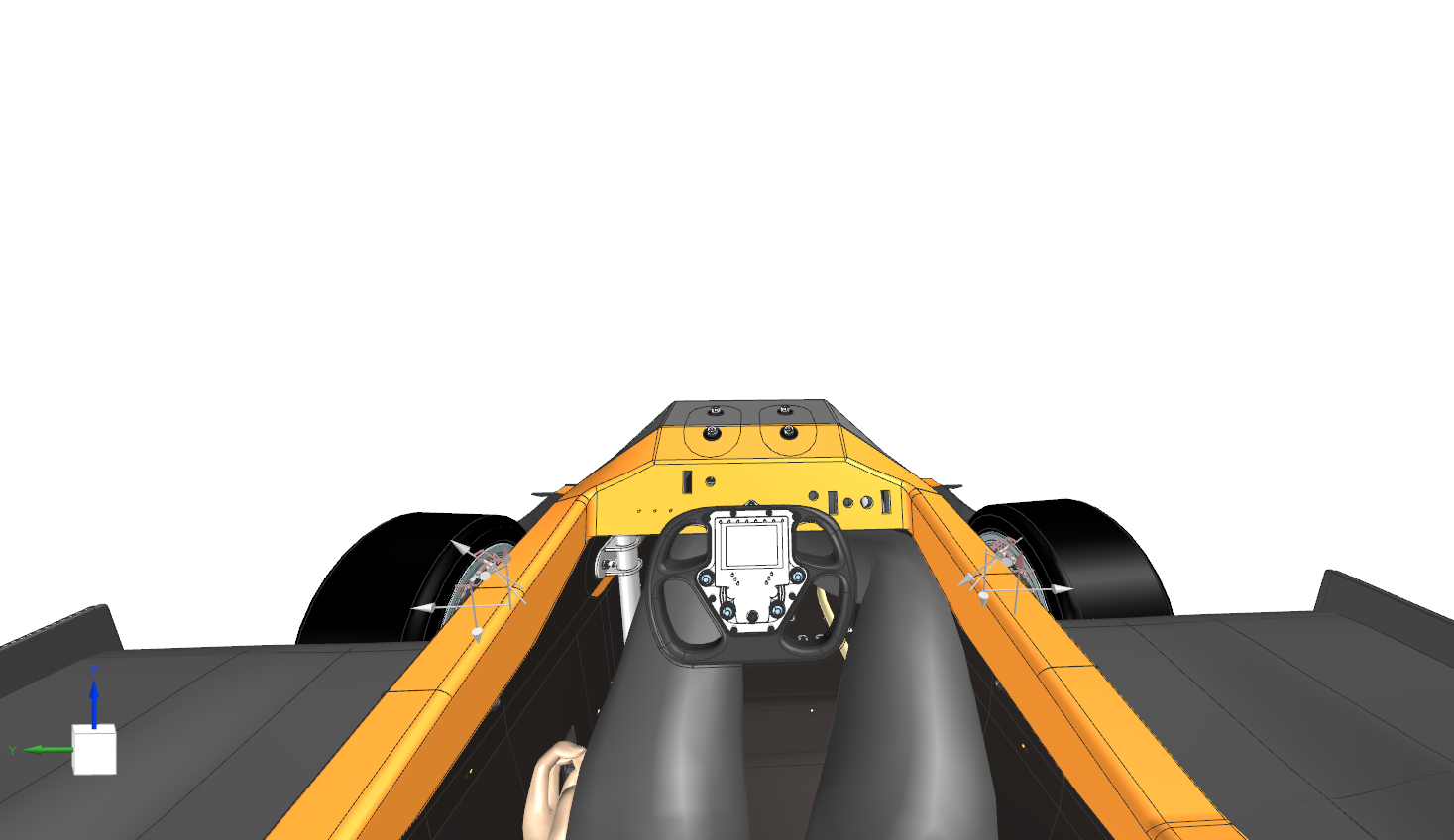

- 01Built driver eye-point, sightline, and reach geometry in Siemens NX to size the cockpit.
- 02Set pedal-box and seating adjustability to cover the full range of team drivers.

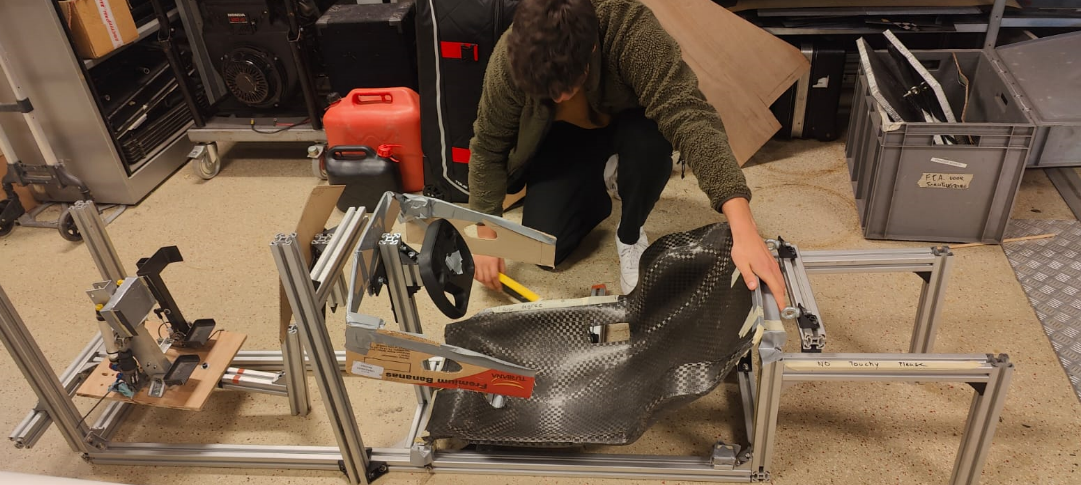

- 03Validated the driver package on a physical fitment rig.
03 Result
- —Confirmed correct sightline and reach for all drivers.
- —Full driver range accommodated, with adjustable pedals.
- —Package validated on the fitment rig before build.
